Adjust Camera Motion Settings

Adjust Camera Motion Settings

Regions and Alerts

The Eagle Eye Networks VMS allows an unlimited amount of regions and alerts per camera. These can be added by opening camera settings and selecting the motion tab. In this example, a region named Entry-Exit is shown with separate motion sensitivity from the overall motion sensitivity of the image.

01-region-not-selected

Camera Settings – Motion

Master Motion Sensitivity is the overall level of sensitivity to objects moving anywhere in the entire image from camera. The default setting is 80 and will trigger a recording for anything that moves within the camera image. Master Motion Object Size is the overall size of any single object that will trigger motion.  The size choices are small, medium, and large, which are 1%, 5% and 10% of the size of the overall camera image.

Regions can be used to adjust when a camera records full video. Adjusting the motion settings with regions will help to find areas of interest much faster and also help reduce bandwidth usage.

To add a new region, click the yellow “+” icon.  Clicking anywhere in the list of Regions/Alerts will automatically select a region and make it editable.

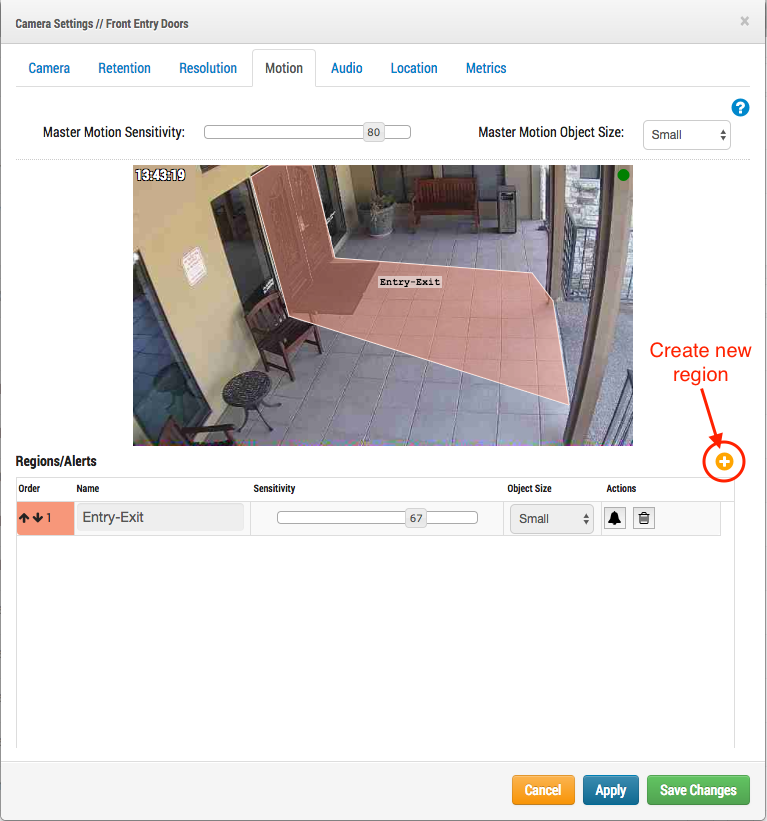

02-create-new-region-2017-02-16-13-43-39

Create new region button

If an alert is enabled, the alert symbol shows as green.Clicking the alert icon will show the alert settings. The alert icon or the up arrow will hide the alert settings. If there are multiple regions, any region can be selected by clicking the alert icon on that region and the alert settings will be displayed.

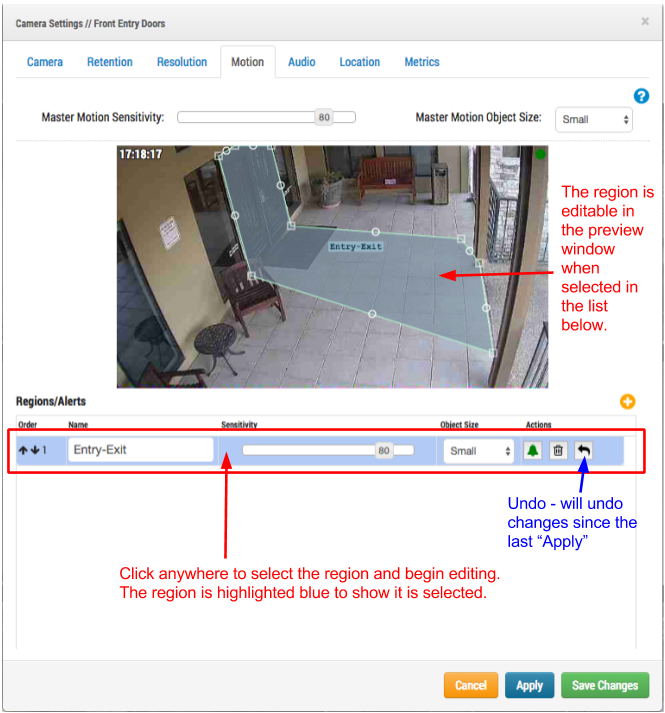

This is an example of a region selected for editing. The Entry-Exit region shows an alert and undo icon.

Example of region selected

An “undo” icon will appear for each region that has been edited but not yet applied. Clicking the undo icon will revert the changes.

To save and see the results of edits without closing the motion settings, click the blue “Apply” button at the bottom of the motion settings dialogue.  Until the settings are applied, the results are not seen in the preview window.  Once the settings are applied, all “undo” icons will disappear. Selecting apply saves the settings and allows continued editing on any tab within camera settings.

03-regions-alerts-list-rev1

Create new region, region list, alert, and apply

To enable an alert, click the alert icon which will open the alert settings. Select the checkbox to enable the alert and adjust the settings as desired. Click apply to save the alert and continue editing or click save changes to save all and close the camera settings dialogue.

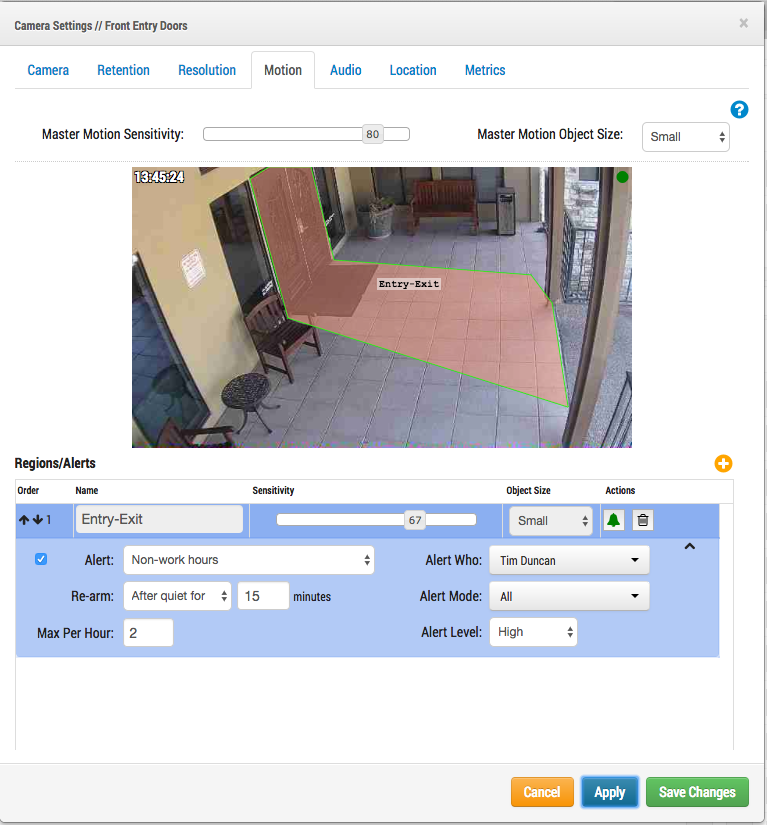

example-of-alert-settings

Example of alert settings

Regions and alerts can be added and edited quickly and efficiently.

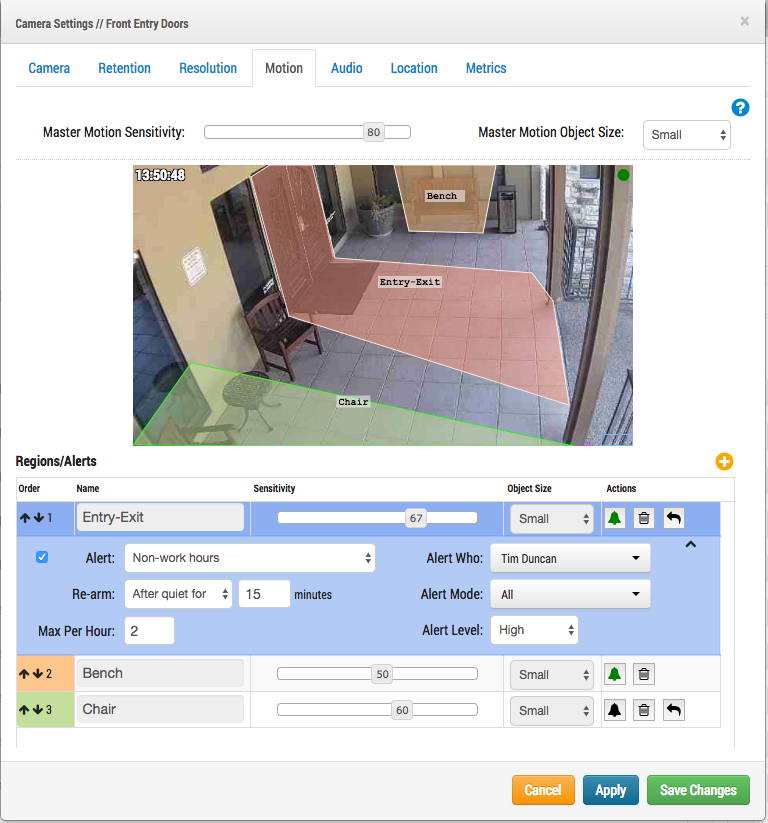

example-of-alert-settings

Example of multiple regions and alerts
