Amazon KfB Provisioning
Step 1: Download the KfB App (Andriod only)
Username: lssjwpie
Password: Amazon2!

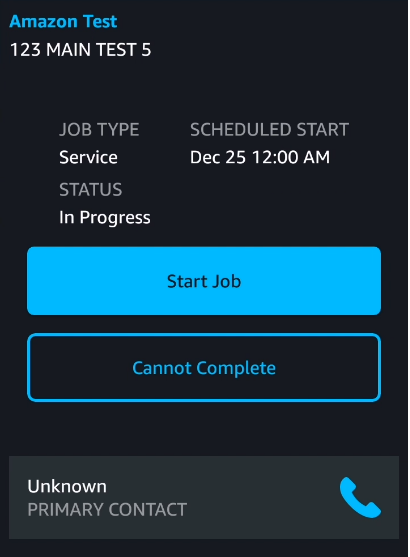

Step 3: Start Job
a) Click on Job Name from the project list
b) Click Start Job button
Step 4: Assign Gateway

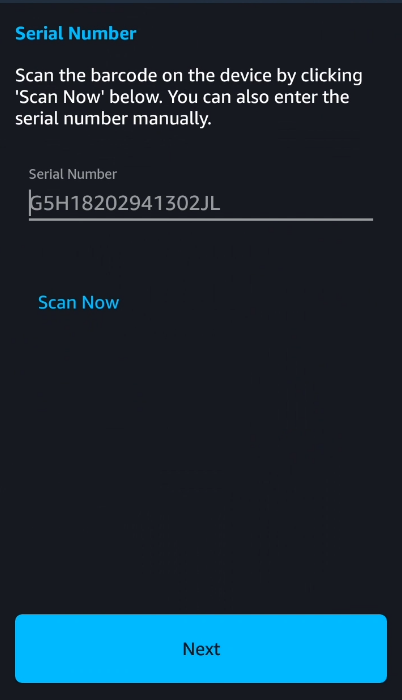

a) Scan the QR code provided by Latitude. This QR code can be found on the Amazon assigned key fob, and be found on the KfB device. Click Next.
b) The app will prompt you about a cell modem. Select "No, device connected via Ethernet" This is confusing because the device is actually connected via an internal cellular modem.

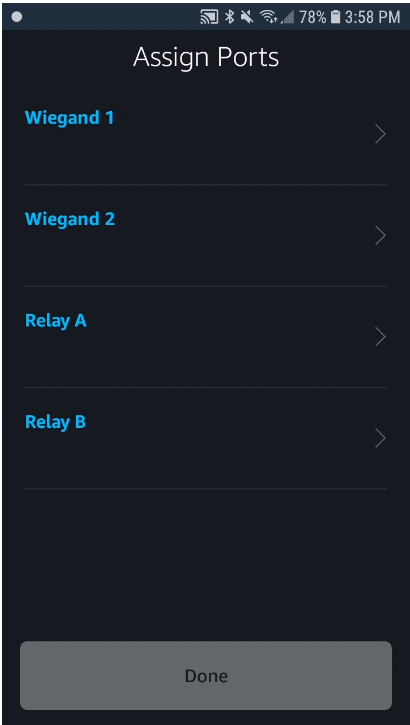

Step 5: Assign Ports
a) Select Wiegand 1 to assign the first door. This coincides with ports 1-3 on the KfB device.

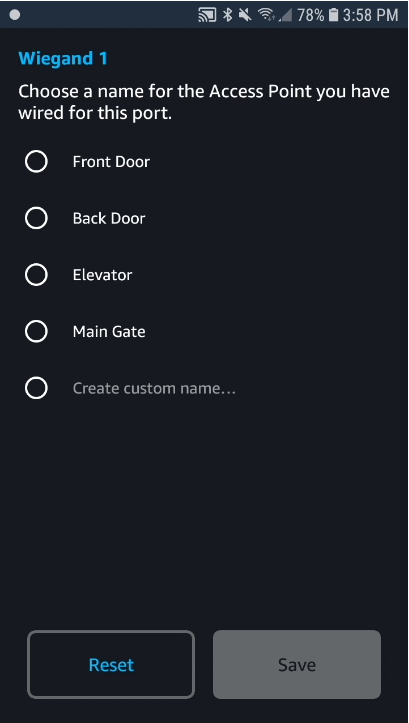

b) Assign the port to a door. Use one of the provided choices or enter a specific name, such as "Package Room".
c) Repeat this step for each port used on the KfB device
Step 6: Record Key (Fob)
a) An Amazon labeled fob was provided by Latitude in the package. This fob needs to be programmed to work with Amazon (it has already been programmed to work with Brivo) and this done with the app.

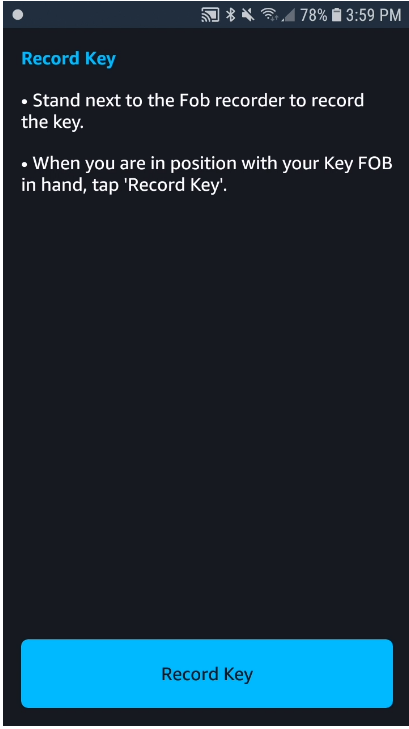

b) Follow the instructions on the app:
1. Stand next to the Fob recorder (reader) to record the key.
2. When you are in position with the Key FOB in hand, tap 'Record Key'.

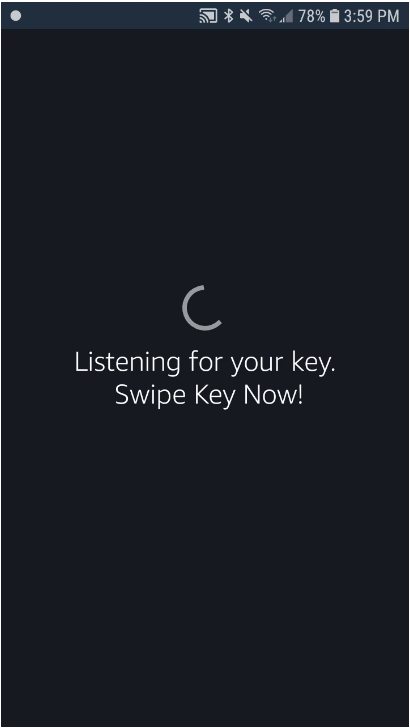

3. Wait for the app to get ready, and then scan the FOB when the app says, "Listening for your key. Swipe Key Now!"

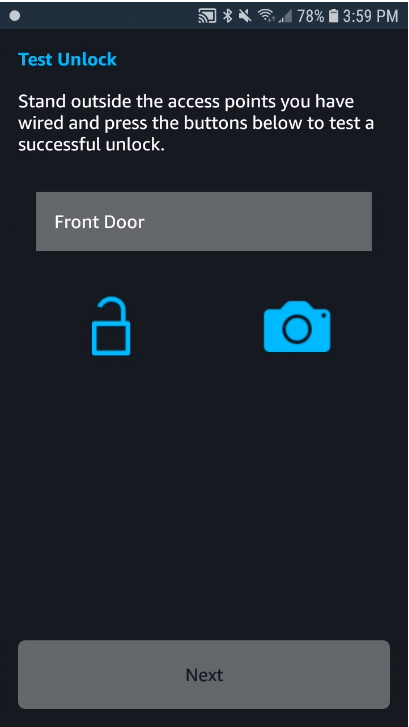

Step 7: Test the Unlock Function

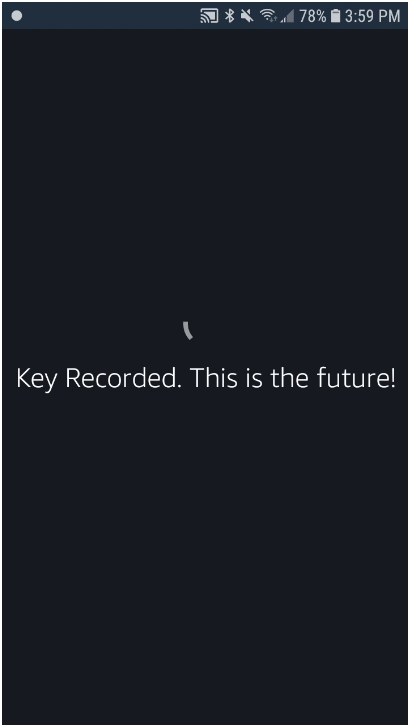

a) Right after the key has been recorded, the app will prompt you to test the door using the app.
b) Tap the unlock icon.

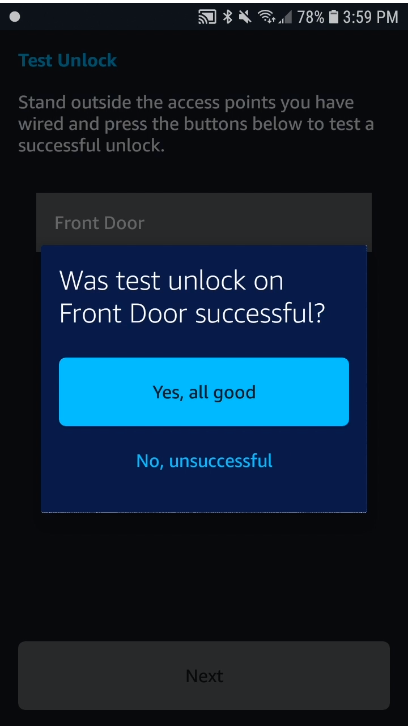

c) The app asks you if the test worked, click "Yes, all good", unless the test didn't work. If the test didn't work, contact Latitude Support at 866.739.8588 Option 2
Step 8: Take a Photo of the Door & Note Coordinates

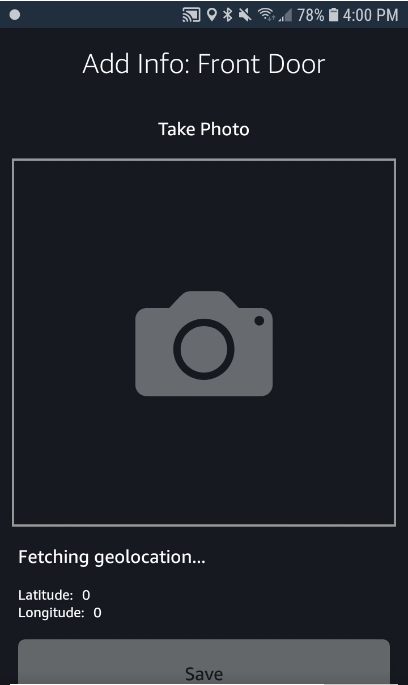

a) Use the Camera icon on the app to activate your camera.
b) Take a clear photo of the outside of the door capturing some of the surrounding area. The purpose of the photo is to guide a delivery driver to the proper door.
c) After saving the photo, the app needs to record the location coordinates of the door. Allow the app to access your location.
Last Step: Provide the Amazon labeled key fob to the designated onsite contact and show the contact that the door fully functions using the FOB.
