Cidron Combi VG3 QR Reader Installation

Cidron Combi VG3 QR Reader Installation

Overivew

The following is the installation guide for the Cidron Combi reader for both slim and standard models.

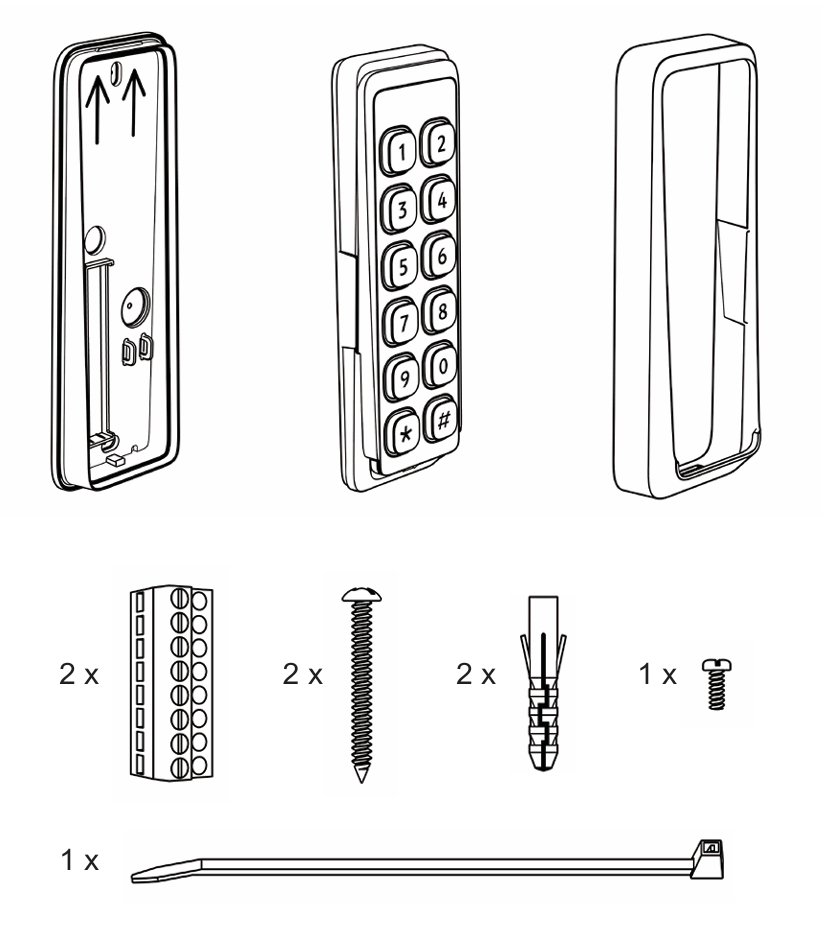

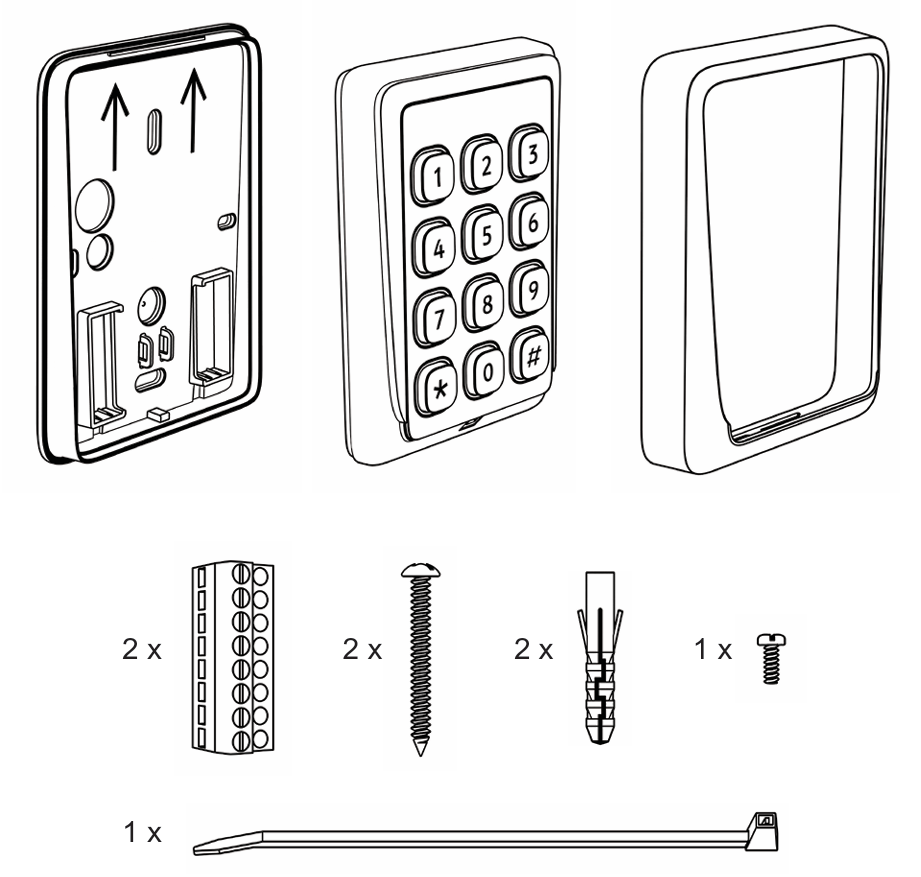

What's in the Box

  1. Weatherproof mounting plate
  2. Main reader module w/PIN pad
  3. Mounting cover
  4. QR code module
  5. 2x terminal connectors (8-pin)
  6. 2x installation screws
  7. 2x anchors
  8. 1x fixing screw
  9. 1x zip tie
Slim Model

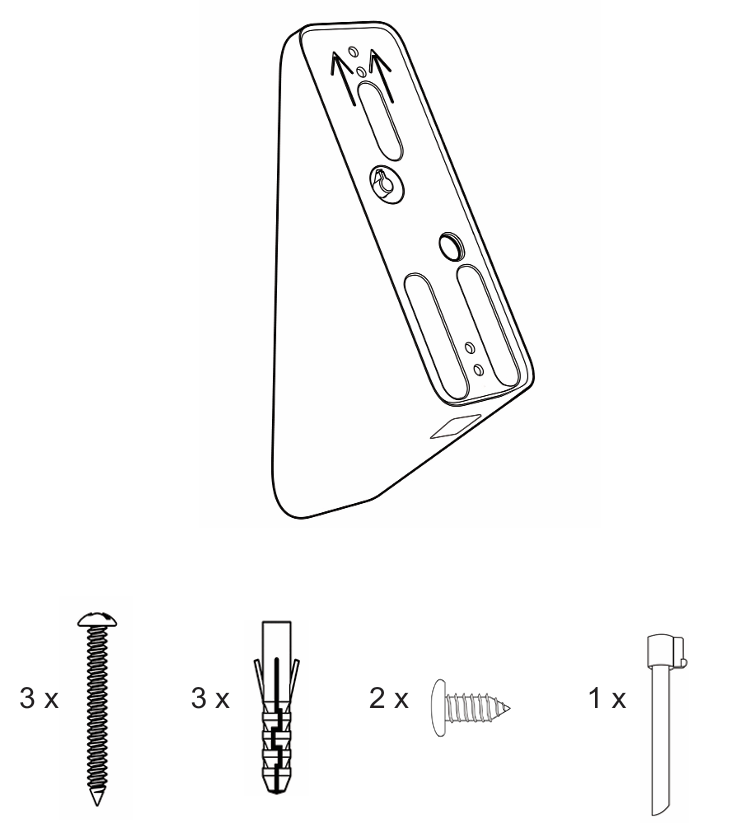

QR Code Module Parts
Reader Module Parts
Standard Model

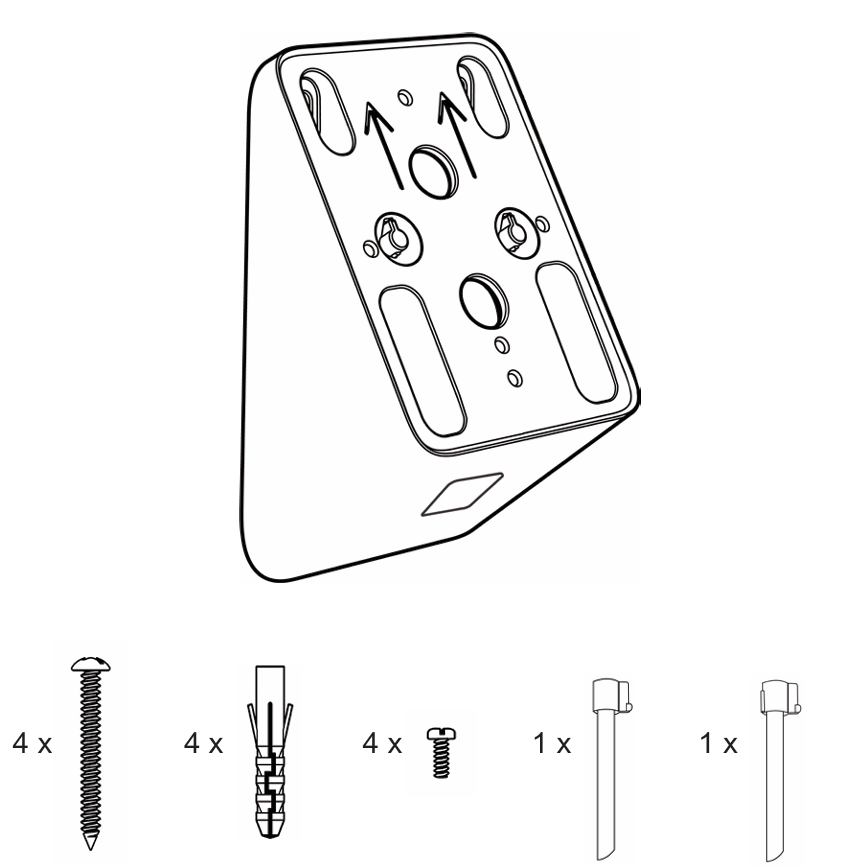

QR Code Module Parts
Reader Module Parts

Mounting

Idea
Give yourself about 12" of extra cable to work with at the mounting location.
Alert
Use AWG 22 or 18 shielded 4-conductor wire for the best results.

Step 1 - Mount the QR Module
  1. Pull the reader cable AND the QR module cable from back to front through the QR code module, and hold the module against the wall or door frame where you will mount the reader.
  2. Mark 3 holes where the screws will go with a punch or awl, using the diagram below.
  3. Drill pilot holes for the screws. If screwing into metal.  If screwing into drywall or concrete, use the supplied anchors.
  4. Fasten the QR code module.
Slim Mounting
Standard Mounting

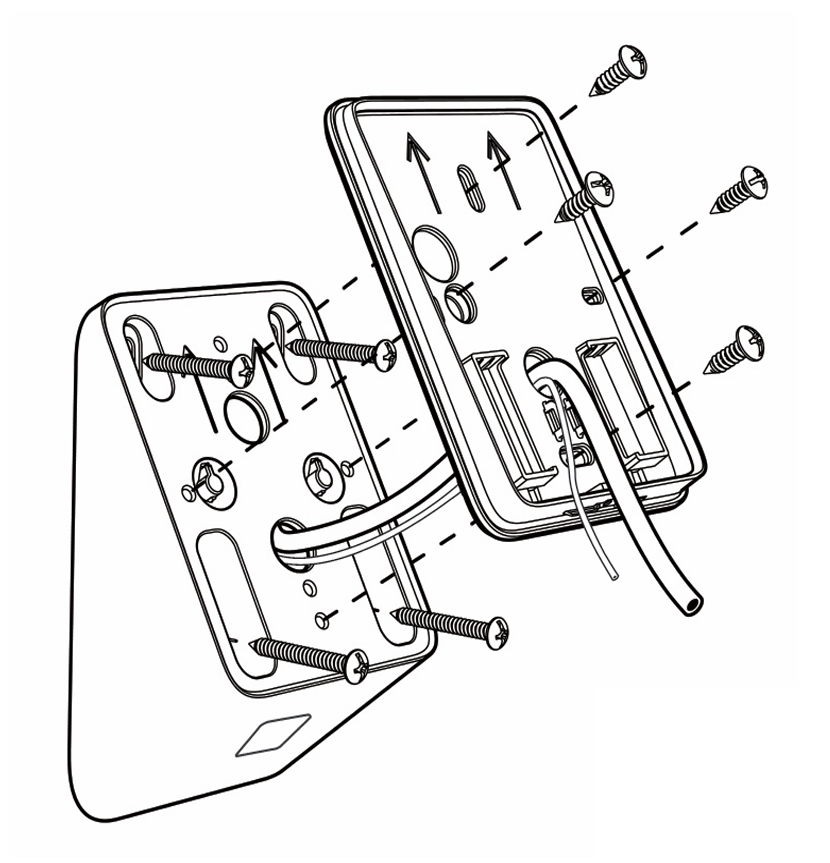

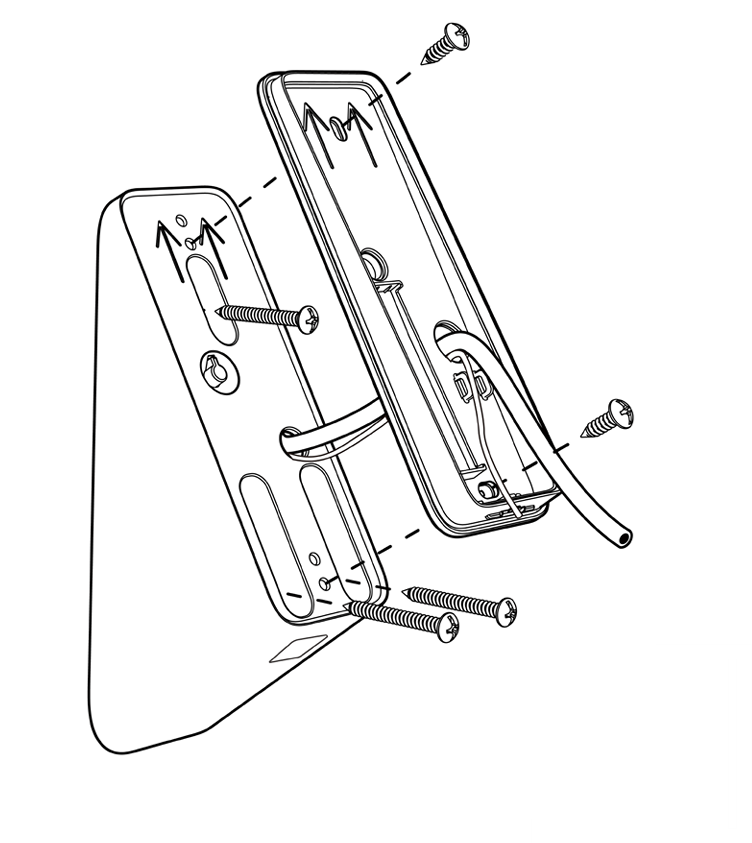

Step 2 - Mount the Installation Plate
  1. Pull the reader cable AND the QR module cable through the rubber installation plate using the hole shown in the diagram above.
  2. Use the small mounting screws provided to fasten the plate to the QR module
Info
Note the up arrows on the plate indicating the position.

Wiring

Two cables should come through the mounting plate: a thin black pigtail from the QR module with 4 conductors (red, black, green, and white).  A larger cable, the reader home run, needs only 4 conductors: 12VDC, Ground, RS 485+, and RS 485-.
​

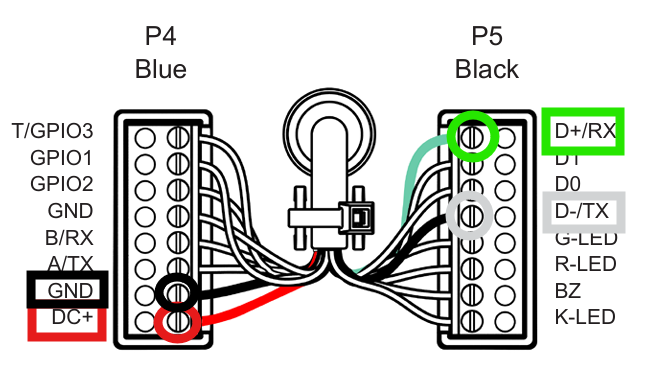

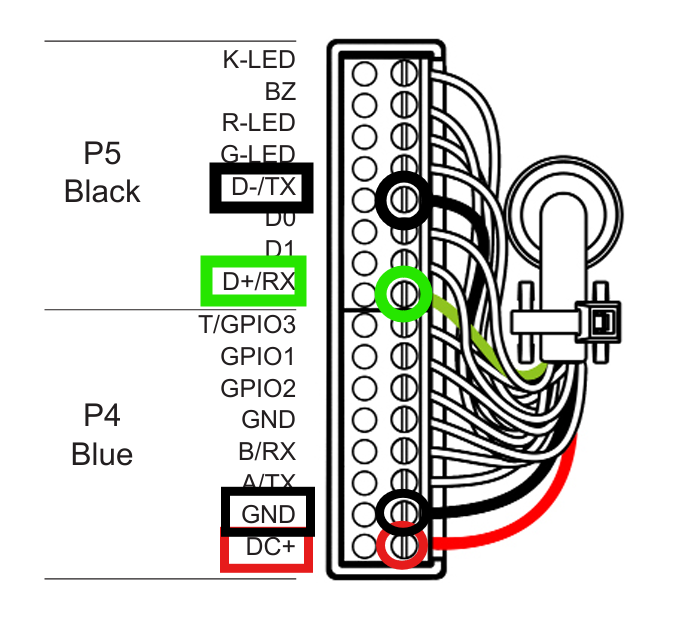

QR Module Wiring
  1. RED = DC+
  2. BLACK= GND
  3. GREEN = D+/RX
  4. WHITE= D-/TX
Standard QR Module Wiring
Slim QR Module Wiring

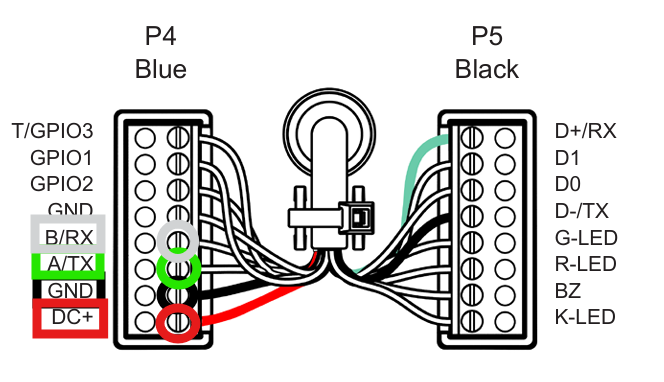

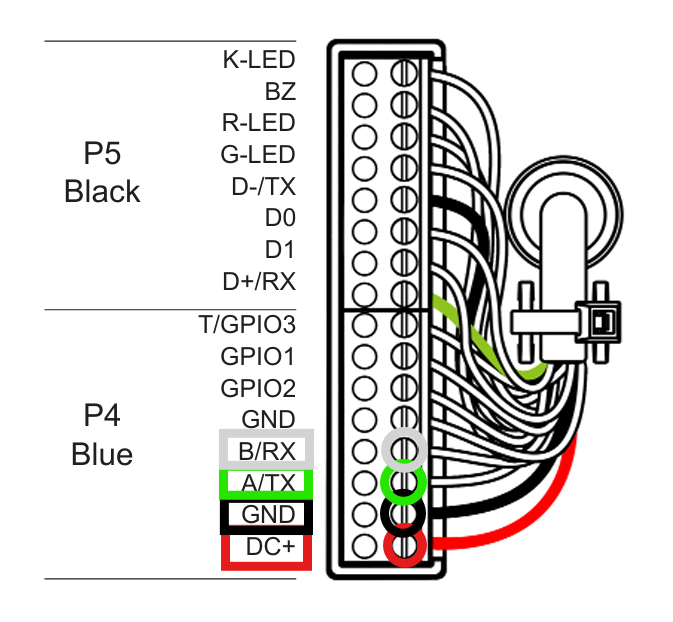

Reader OSDP Wiring
  1. RED = DC+
  2. BLACK = GND
  3. GREEN = A/TX (RS485 +)
  4. WHITE = B/RX (RS485 -)
Standard OSDP Wiring
Slim OSDP Wiring
Warning

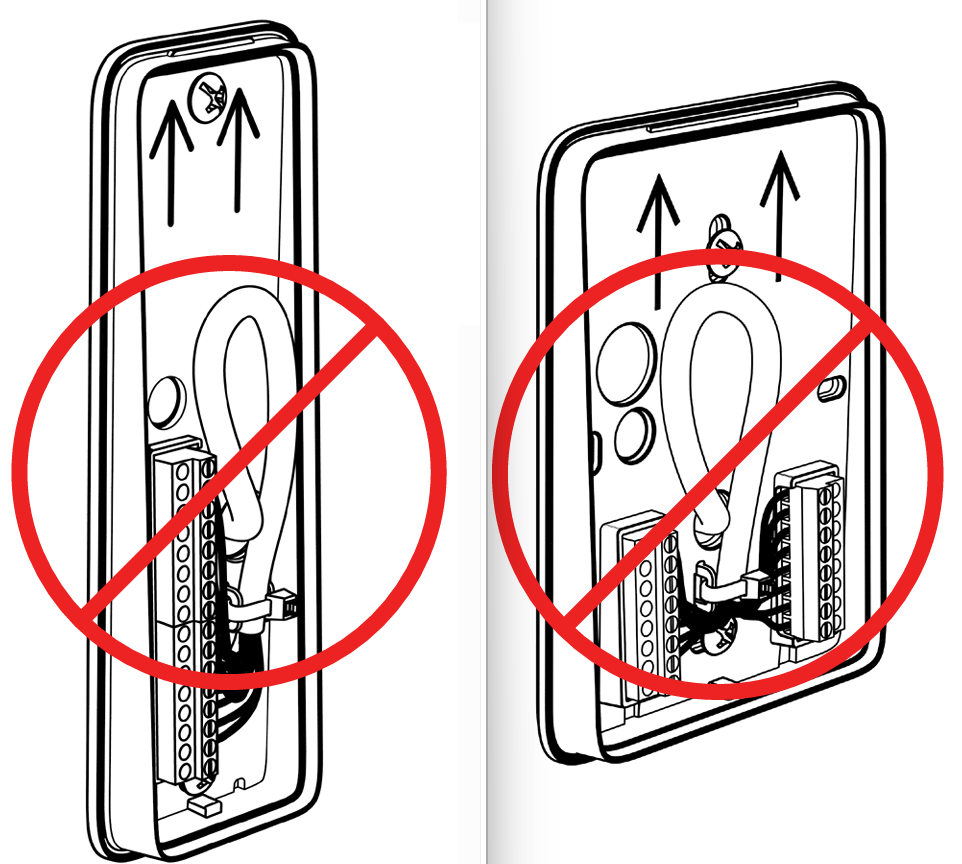

Do not leave extra cable inside the reader


Final Mounting

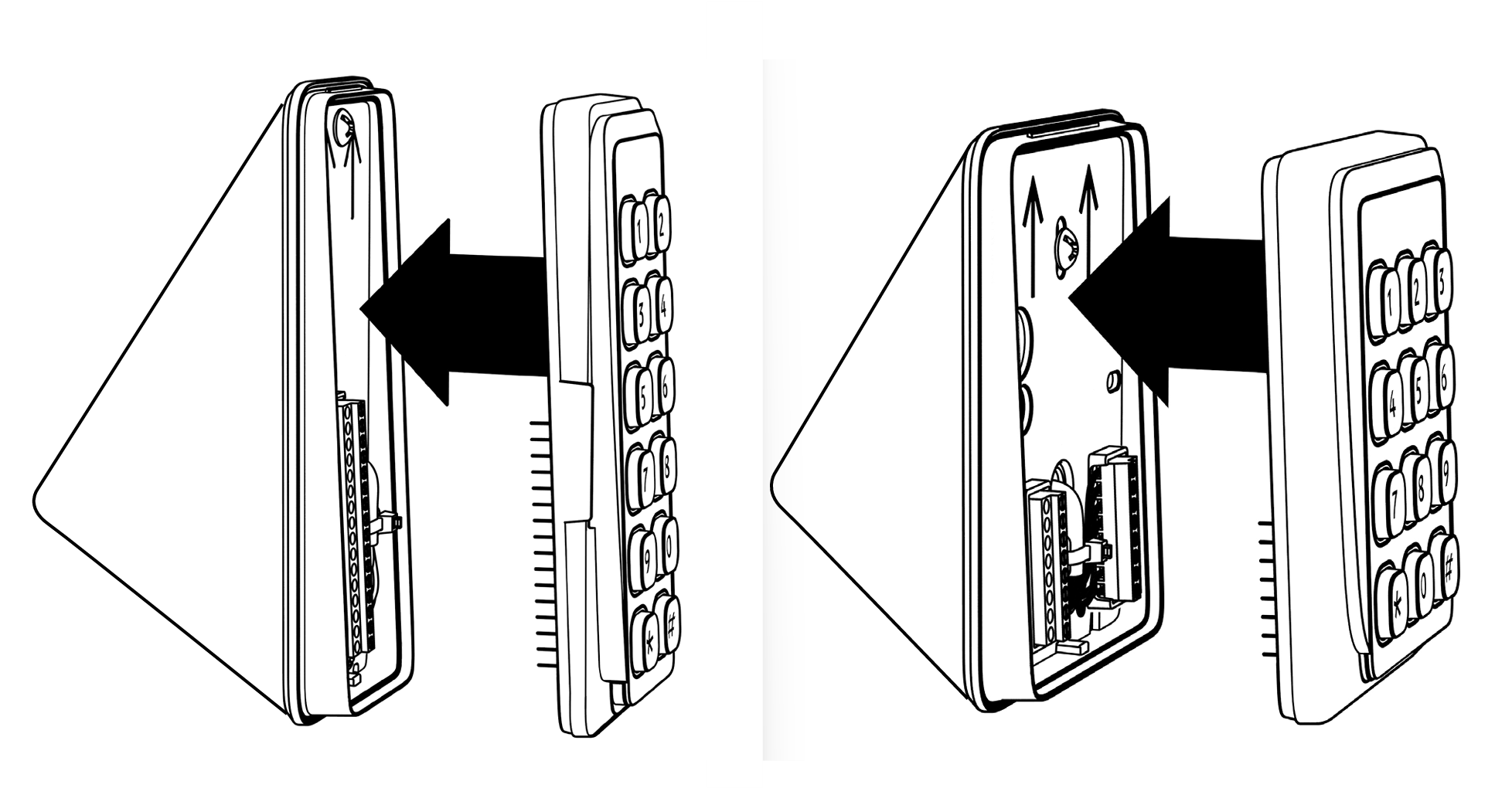

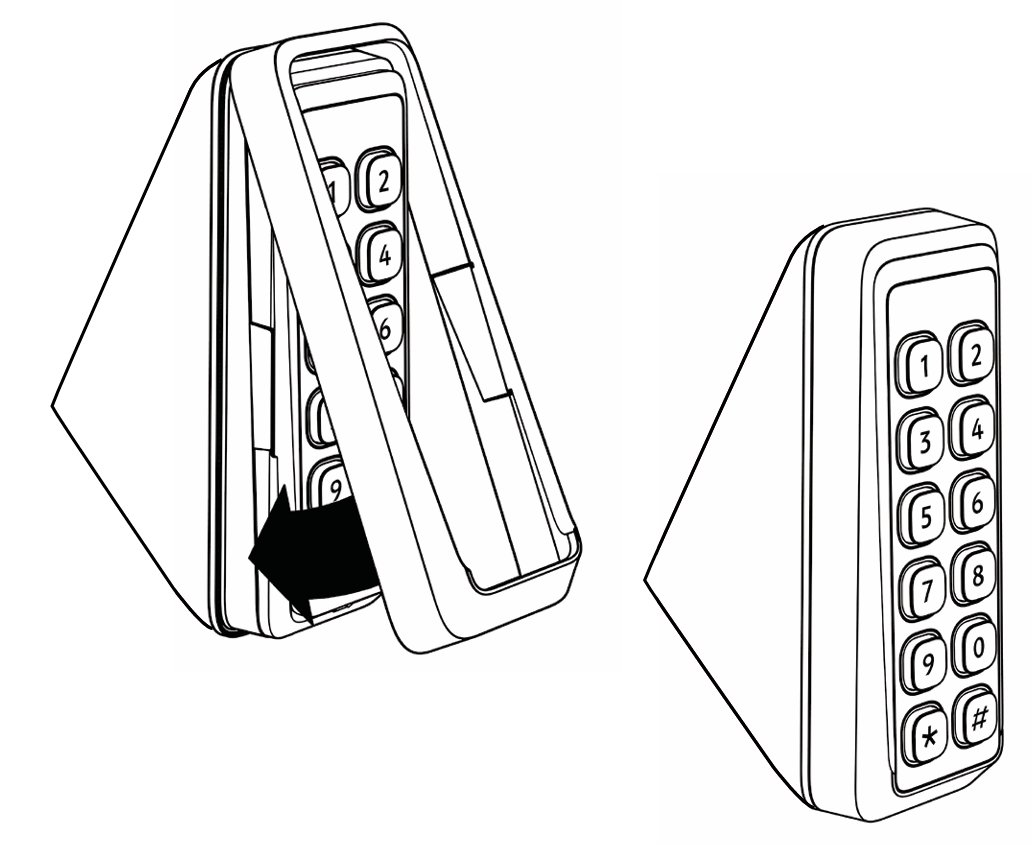

  1. Align the pins with the terminals and gently press the main reader module onto the mounting plate.
Press on the reader module

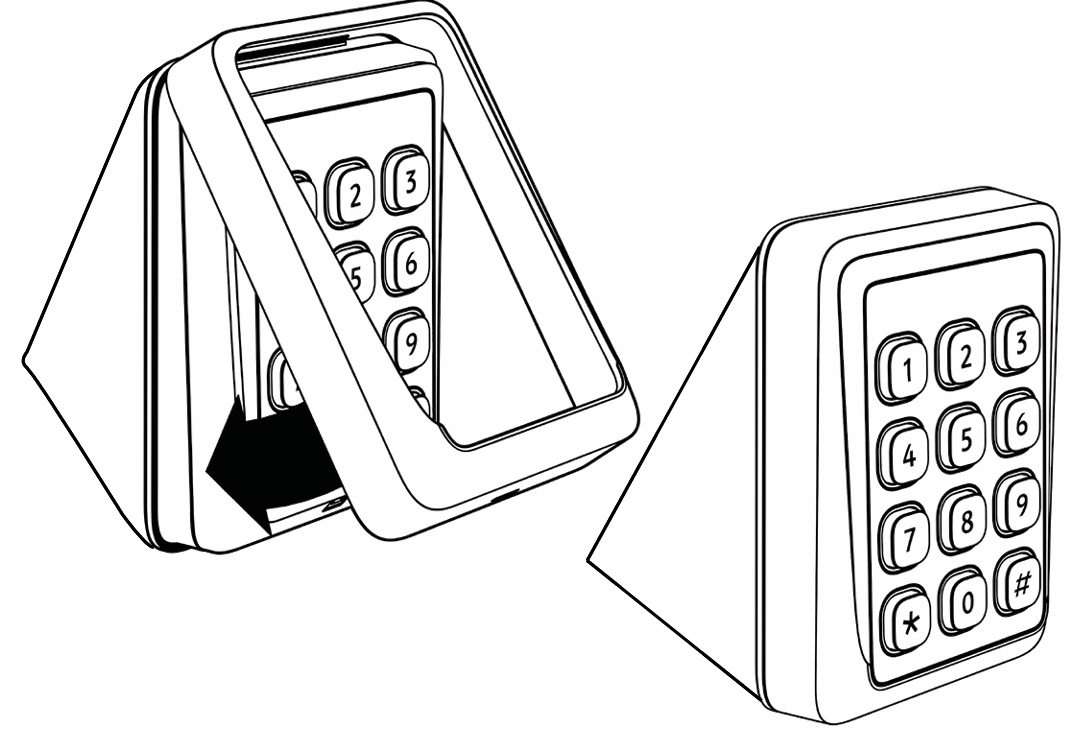

  1. Fasten the front cover

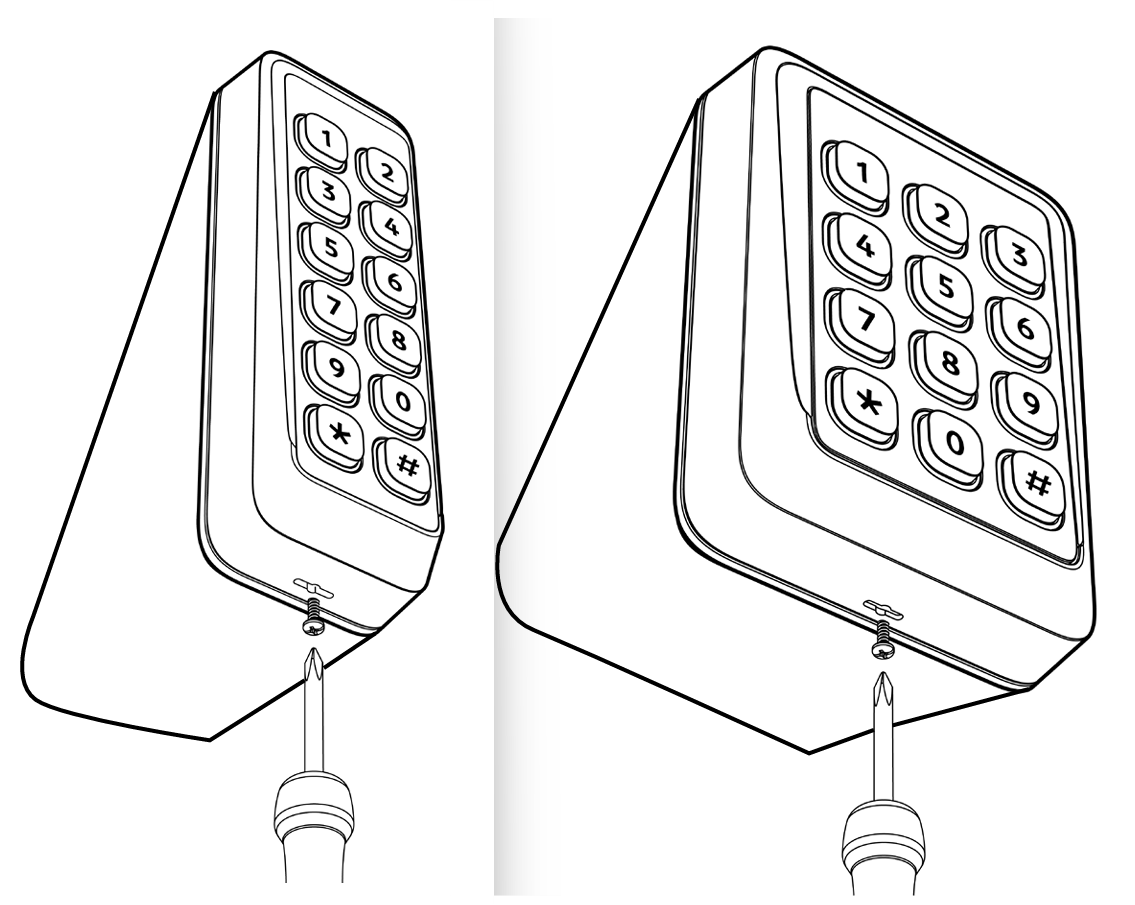

  2. Fasten the tamper screw
Attach Cover Plate
Attach Cover Plate

Fasten Tamper Screw

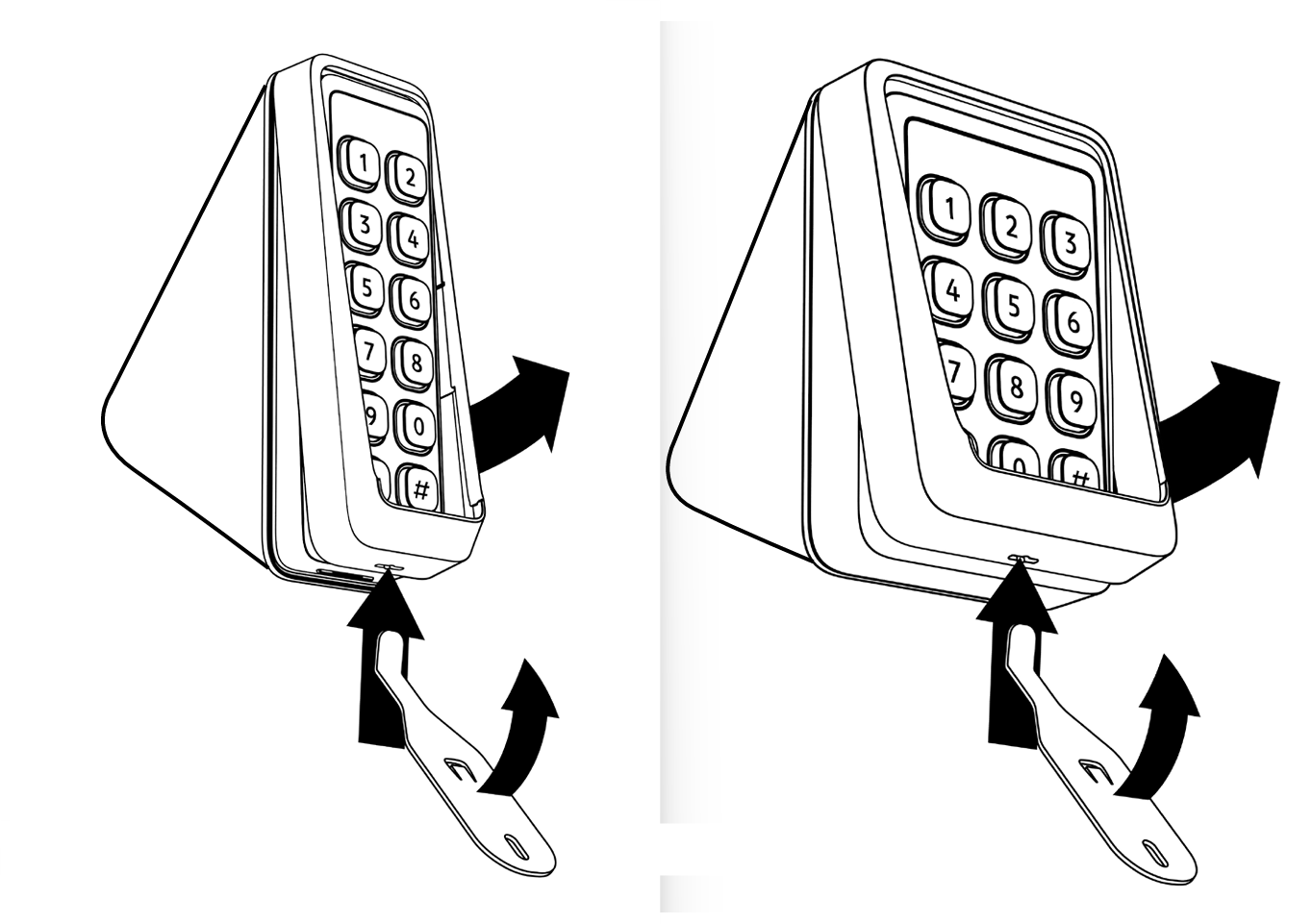

Cover Plate Removal


If you need to remove the cover plate, remove the tamper screw and use the provide tool to gently pry the cover plate off the mount from the bottom.

Cover plate removal
