Barcode Reader Installation - M350 Optical

Barcode Reader Installation - M350 Optical

Overivew

The following guide provides details for mounting and wiring the M350 Optical barcode reader.

Wiring

The reader has pigtail with a phoenix connector.  The connector has four (4) inputs, Data1, Data0, Ground, 12VDC, which supports the Wiegand protocol only.

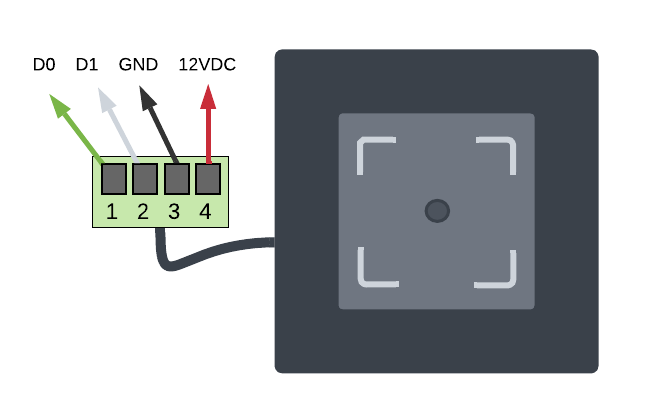

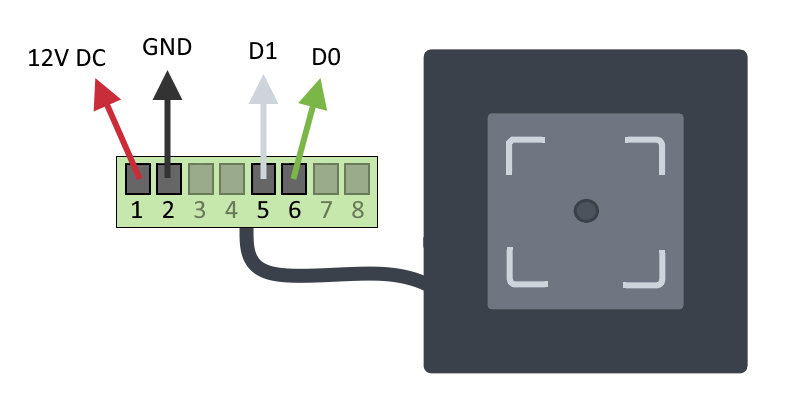

M350 Optical Reader Wiring

Mounting

The is manufactured to fit on a standard 86 gang box, which is the standard everywhere but the USA (just like the metric system!).  We developed a custom faceplate adapter that allows the mounting onto a US standard gang box.

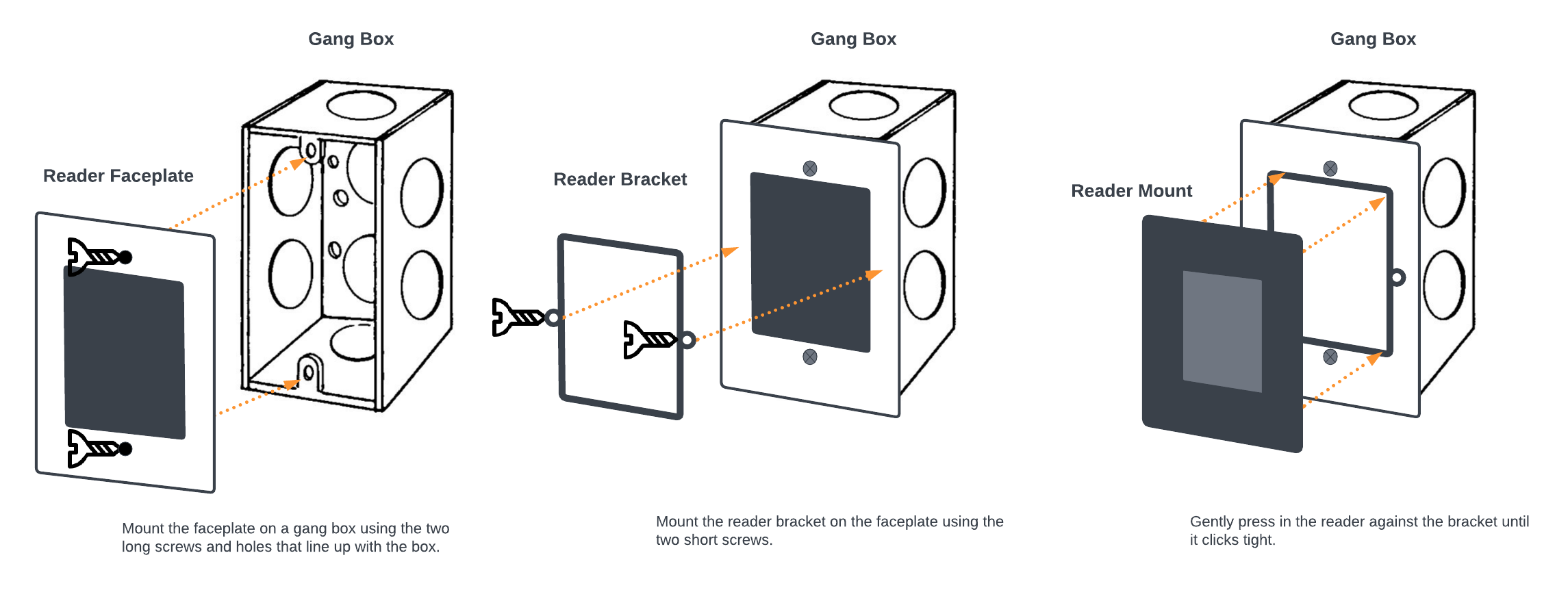

Mounting the M350 Optical Reader

Adjusting the Scan Rate

The following procedure is required to adjust the scan rate to 1.5 seconds (1500ms), which prevents double or triple scans per door entry.

1. Power cycle the reader
2. Present this QR code to the reader:
1.5s Scan Rate
3. Power cycle the reader.
